Backfill Volume & Weight: Estimation, Density, and Compaction Guide

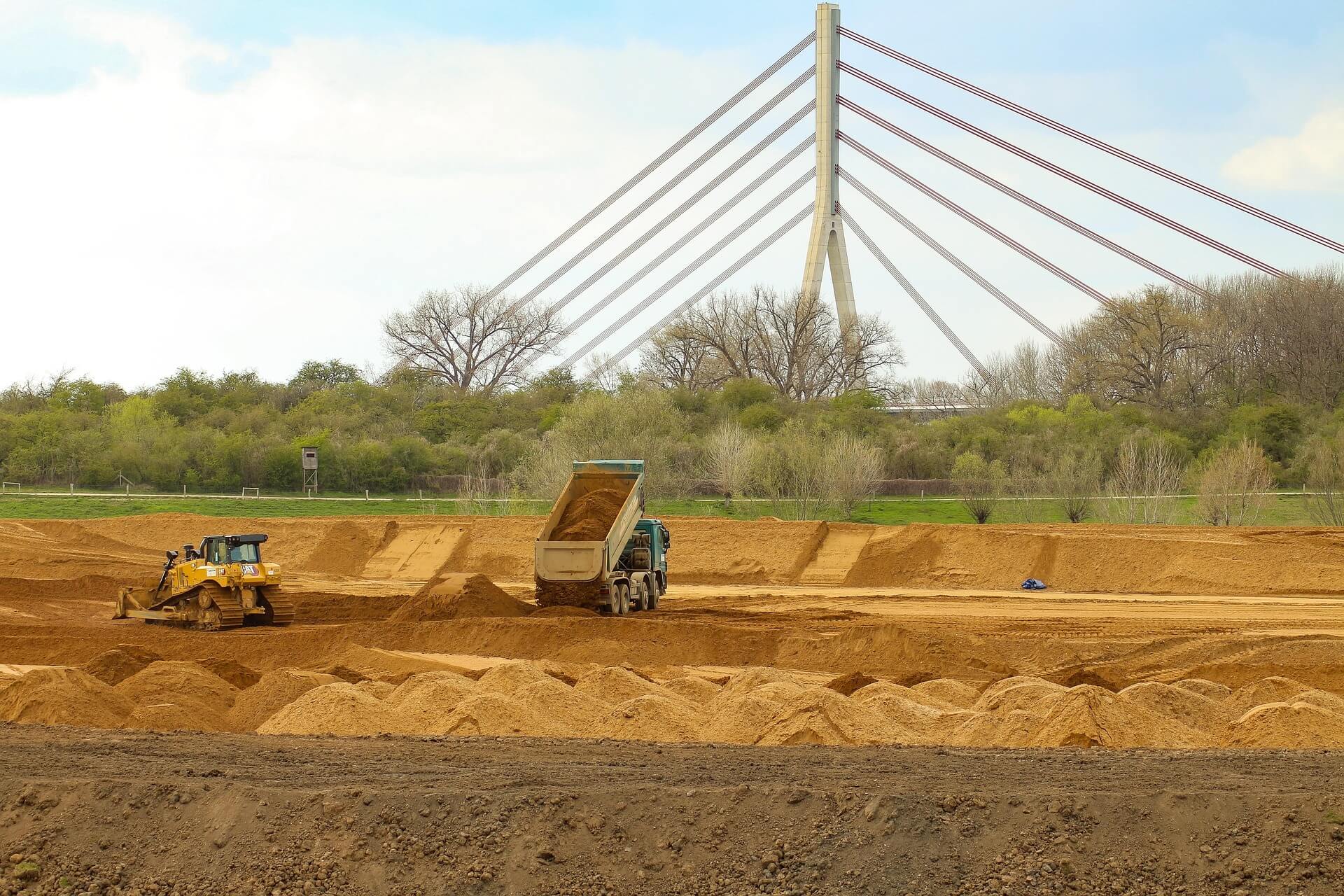

In civil engineering and site development, backfill refers to the material used to refill an excavated hole or the empty space created during the construction of foundations, retaining walls, or utility trenches. While the process may seem straightforward, it is one of the most critical stages in ensuring the structural integrity of a site. Improperly estimated or poorly compacted backfill is the leading cause of future settlement, "puddle formation," and pavement failure.

For contractors and property managers, mastering the transition from Backfill Volume (the 3D space to be filled) to Backfill Weight (the physical mass required for procurement) is essential. Accuracy in these calculations prevents "price uncertainty," eliminates expensive mid-job shortages, and reduces the logistical waste of over-ordering materials.

Understanding Backfill Volume vs. Weight

There is a fundamental relationship in construction math: Weight = Volume × Density. To estimate a project correctly, you must understand both dimensions:

• Backfill Volume: The three-dimensional space (\\(Length \times Width \times Depth\\)) measured in cubic feet (ft³), cubic yards (yd³), or cubic meters (m³).
• Backfill Weight: The actual mass of the material required from the supplier, typically sold in US short tons (2,000 lbs) or metric tonnes (1,000 kg).

The "bridge" between these two is Density—the mass of a material per unit of volume. Because backfill materials like gravel, sand, and soil are particulate, their density changes significantly based on their compaction level.

How to Measure and Calculate Backfill Volume

The accuracy of your estimate is only as good as your initial measurements. For residential driveways or foundations, a tape measure or measuring wheel is standard. For larger commercial sites, aerial mapping or digital takeoffs from construction drawings are preferred.

The Core Volume Formulas

To find the volume of a rectangular area, such as a foundation or trench, use the following formula:

Volume = Length × Width × Depth

Converting Units for Ordering

Consistency in units is mandatory to avoid "massive estimation errors". Most suppliers in the US sell bulk aggregates by the cubic yard, while international projects use cubic meters.

Backfill Density and Why It Matters

Density is not a fixed number; it is a variable dictated by the mix design and moisture content. Using the wrong density value can lead to being short on material by 10% or more.

Common Backfill Materials and Their Densities

Professional estimators use these benchmarks for preliminary planning, though project-specific data from a "local pit or yard" is always preferred.

• Loose Sand: Approximately 1,550 kg/m³ (97 lbs/ft³).
• Loose Aggregate/Gravel: Approximately 1,350 kg/m³ (84 lbs/ft³).
• Compacted Gravel: Ranges from 1,800 to 2,100 kg/m³ (112–131 lbs/ft³).
• Crushed Rock Base: Approximately 2,100 to 2,300 kg/m³ (131–143 lbs/ft³).

Loose vs. Compacted Volume

This is the most frequent pitfall in backfill estimation. Material is often delivered in a "loose" state (containing many air voids). Once it is placed and mechanically rolled, it settles into a smaller, denser volume. For example, "wet volume" in concrete is 52.4% higher than dry volume due to how particles settle when mixed. For backfill, you must calculate based on the compacted depth specified in the plans, then add a waste and compaction factor of 5–10% to your order.

Worked Example: Calculating Backfill for a Trench

Scenario: You are refilling a utility trench that is 100 feet long, 3 feet wide, and 4 feet deep. You are using a gravel base that has a compacted density of 125 lbs/ft³.

1. Calculate Volume (ft³): \\(100\text{ ft} \times 3\text{ ft} \times 4\text{ ft} = \mathbf{1,200\text{ cubic feet}}\\).
2. Convert to Volume (yd³): \\(1,200 \div 27 = \mathbf{44.44\text{ cubic yards}}\\).
3. Calculate Weight (lbs): \\(1,200\text{ cu. ft.} \times 125\text{ lbs/ft}^3 = \mathbf{150,000\text{ lbs}}\\).
4. Convert to Tons: \\(150,000 \div 2,000 = \mathbf{75\text{ Tons}}\\).
5. Apply Waste Factor (5%): \\(75 \times 1.05 = \mathbf{78.75\text{ Tons}}\\).

Professional Tip: Round up to 80 tons to ensure you cover irregular site edges and prevent a second "short-load" delivery fee.

Estimating Around Pipes and Structures

When backfilling around structures (like a cistern or a basement wall) or pipes, the volume of the structure itself must be deducted from the total excavation volume.

Formula for Structured Backfill:

Net Backfill Volume = Total Excavation Volume - Volume of the Structure

For example, if you have a 10m x 7m x 4m excavation (280 m³) containing a rectangular tank that is 5m x 3m x 3m (45 m³), the backfill requirement is \\(280 - 45 = \mathbf{235\text{ m}^3}\\).

ASCII Sketch: Backfill Deduction Concept

       _______________________
      |        BACKFILL       |
      |   _________________   |
      |  |                 |  |
      |  |    STRUCTURE    |  |  (Deduct this volume)
      |  |    (e.g. Pipe)  |  |
      |  |_________________|  |
      |_______________________|

Common Backfill Estimating Mistakes

• Mixing Inches and Feet: Failing to divide the depth in inches by 12 before multiplying will result in an estimate 12 times too high.
• Ignoring Soil Swell/Shrinkage: Excavated soil "swells" when removed from the ground. If you plan to reuse site-dirt as backfill, you may find you have 20% more volume than when it was in the earth.
• Neglecting Base Preparation: Applying backfill over a "debris-filled" or muddy base prevents proper bondage of aggregates.
• Confusing Ton vs. Tonne: A US Ton (2,000 lbs) is lighter than a Metric Tonne (approx. 2,204 lbs). This mistake leads to a 10% material shortage on large projects.

How to Use a Backfill Calculator Effectively

Utilizing a digital Backfill Volume & Weight Calculator is the most effective way to eliminate arithmetic risks. To get the best results:

• Select the correct material type: Presets for sand, gravel, and stone will auto-populate realistic density values.
• Enter decimals, not fractions: Most calculators cannot process "1/4 inch"; enter "0.25" instead.
• Factor in Finishers: If you are topping the backfill with mulch or topsoil, calculate those layers separately with their own depth requirements (typically 2–4 inches).

Key Takeaways for Accurate Backfill Estimates

• Measure precisely: Use "inside dimensions" for foundations and trenches.
• Start with a stable base: Clear the area of "large and small debris" (rocks, twigs) before refilling.
• Factor in Compaction: Always calculate based on the final compacted depth, and then add a 5–10% wastage margin.
• Coordinate Logisitcs: Know your hauler's capacity (typically 18–22 tons for a tri-axle truck) to avoid "idle labor" costs while waiting for deliveries.

References

Professional Disclaimer: Calculator results and guide information are intended for general planning and estimation purposes only. Actual material requirements, densities, and project outcomes may vary based on unique site conditions, moisture content, local building codes, and real-time compaction achieved. Always consult with a qualified civil engineer or professional estimator before placing final material orders.
